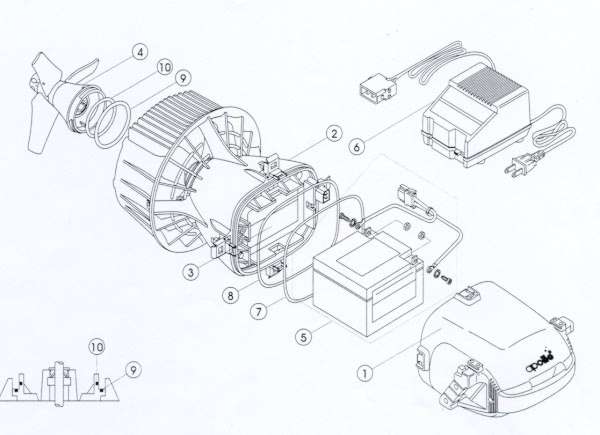

| APOLLO / DACOR SCOOTER ASSEMBLY |
|
| KEY | PART NUMBER | DESCRIPTION |
| 1 | 295-20-XX-001 | Head Assy |
| 2 | 295-20-XX-002 | Body Assy |
| 3 | 295-20-80-002 | Bulkhead Assy |
| 4 | 295-20-80-009 | Propeller Assy |
| 5 | 195-81-00-007 | Battery Assy |
| 6 | 195-81-00-008 | Battery Charger |
| 7 | 399-30-00-177 | Body Ring |
| 8 | 399-30-00-270 | Body O-Ring |
| 9 | 399-30-00-239 | O-Ring |
| 10 | 399-30-00-236 | O-Ring |
