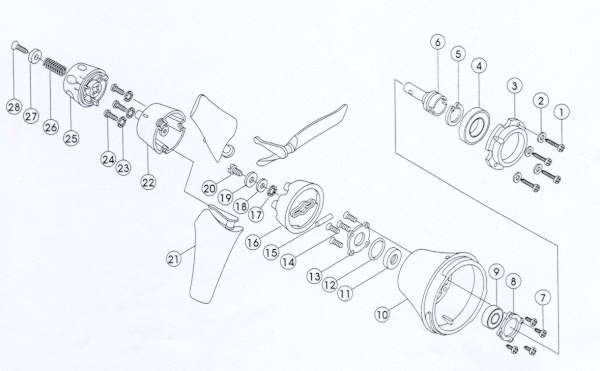

| HUB
ASSEMBLY |
 |
| |
| KEY |
PART
NUMBER |
DESCRIPTION |
| 1 |
399-01-00-521 |
Screw |
| 2 |
399-01-00-010 |
Washer |
| 3 |
395-20-80-041 |
Bearing
Housing |
| 4 |
399-02-00-003 |
Bearing |
| 5 |
399-01-00-057 |
C-Ring |
| 6 |
395-00-00-002 |
Propeller
Shaft |
| 7 |
399-01-00-501 |
Screw |
| 8 |
395-11-00-001 |
Bearing
Retainer |
| 9 |
399-02-00-002 |
Bearing |
| 10 |
395-20-80-004 |
Propeller
Shaft Casing |
| 11 |
399-36-00-000 |
Seal |
| 12 |
399-30-00-022 |
Seal
O-Ring |
| 13 |
395-11-00-005 |
Seal
Retainer |
| 14 |
399-01-00-502 |
Screw |
| 15 |
399-01-00-280 |
Pin |
| 16 |
395-20-80-038 |
Propeller
Base |
| 17 |
399-01-00-028 |
Washer |
| 18 |
399-01-00-027 |
Spacer |
| 19 |
395-11-00-009 |
Propeller
Base Washer |
| 20 |
395-00-04-008 |
Clutch
Screw |
| 21 |
295-20-80-010 |
Propeller
Blade |
| 22 |
395-20-80-036 |
Propeller
Retainer |
| 23 |
399-01-00-021 |
Washer |
| 24 |
399-01-00-504 |
Screw |
| 25 |
395-20-80-037 |
Pitch
Knob |
| 26 |
395-12-00-003 |
Knob
Spring |
| 27 |
395-00-04-009 |
Knob
Screw Washer |
| 28 |
399-01-00-512 |
Screw |
